Patriot Series Limited 250 Edition Subwoofer
1776 – 2026 · 250 Years of Freedom
The Patriot Series Limited 250 Edition is American Bass Audio's most exclusive subwoofer ever made. Only 250 units exist — each individually hand-numbered from the original run. When they're gone, this chapter closes permanently.

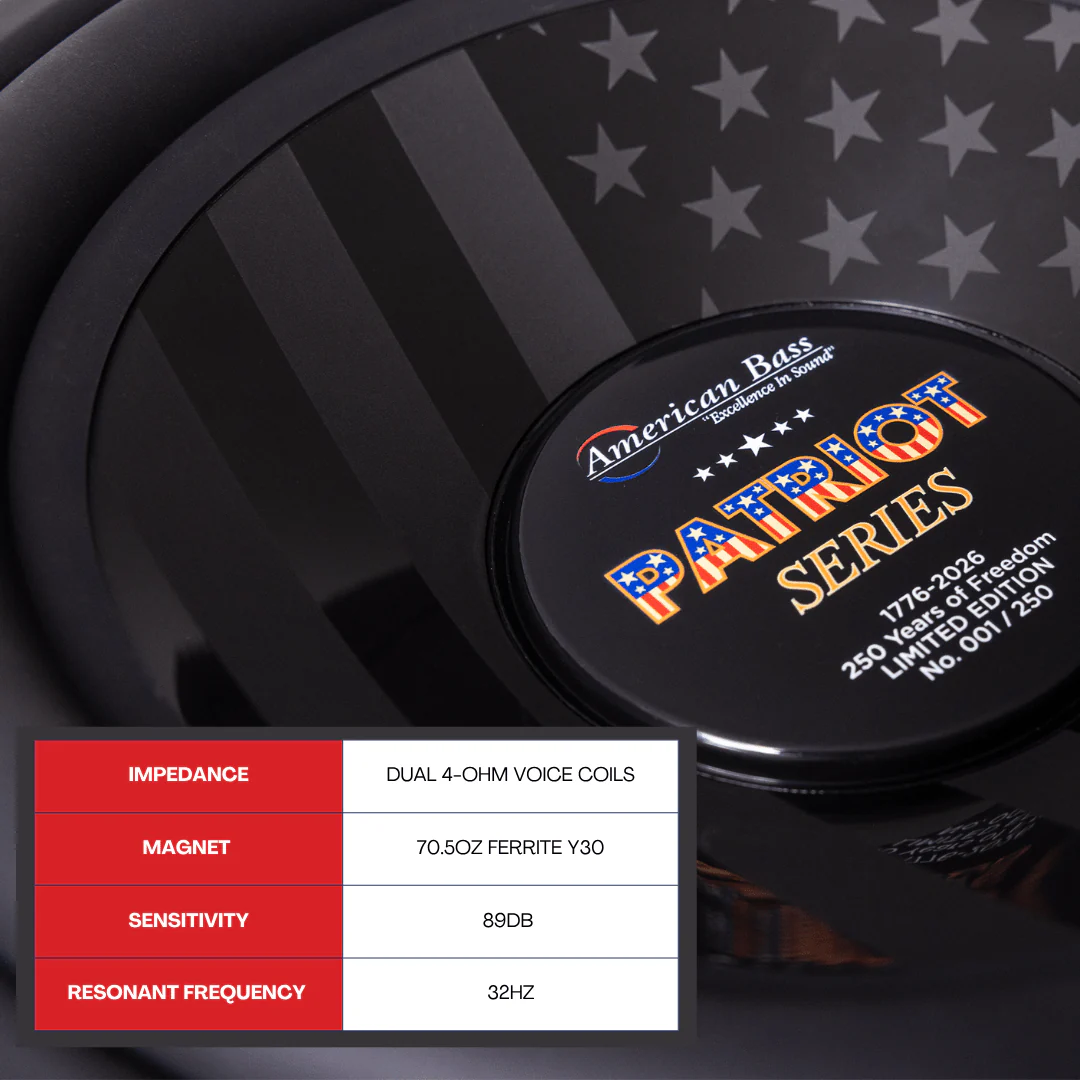

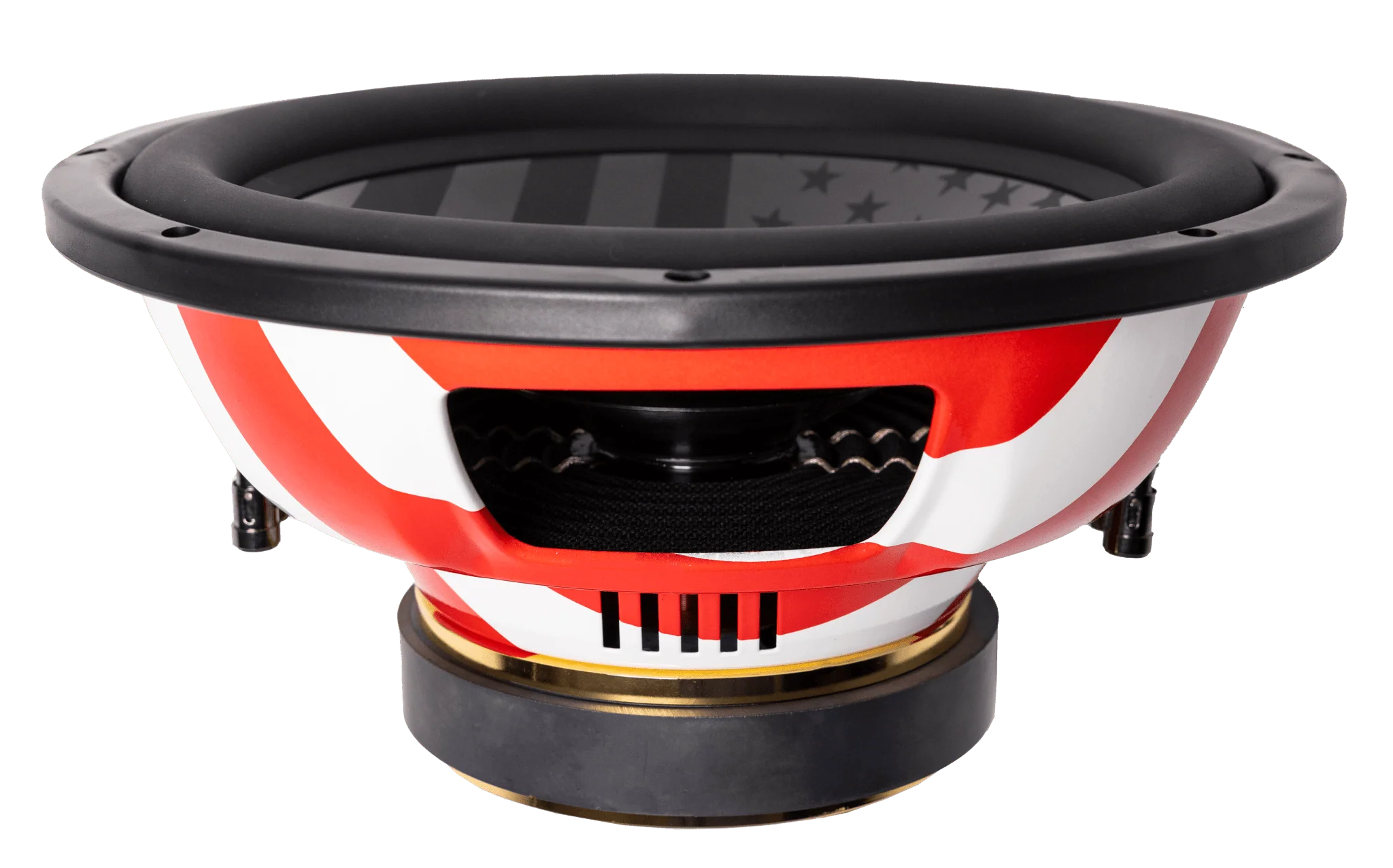

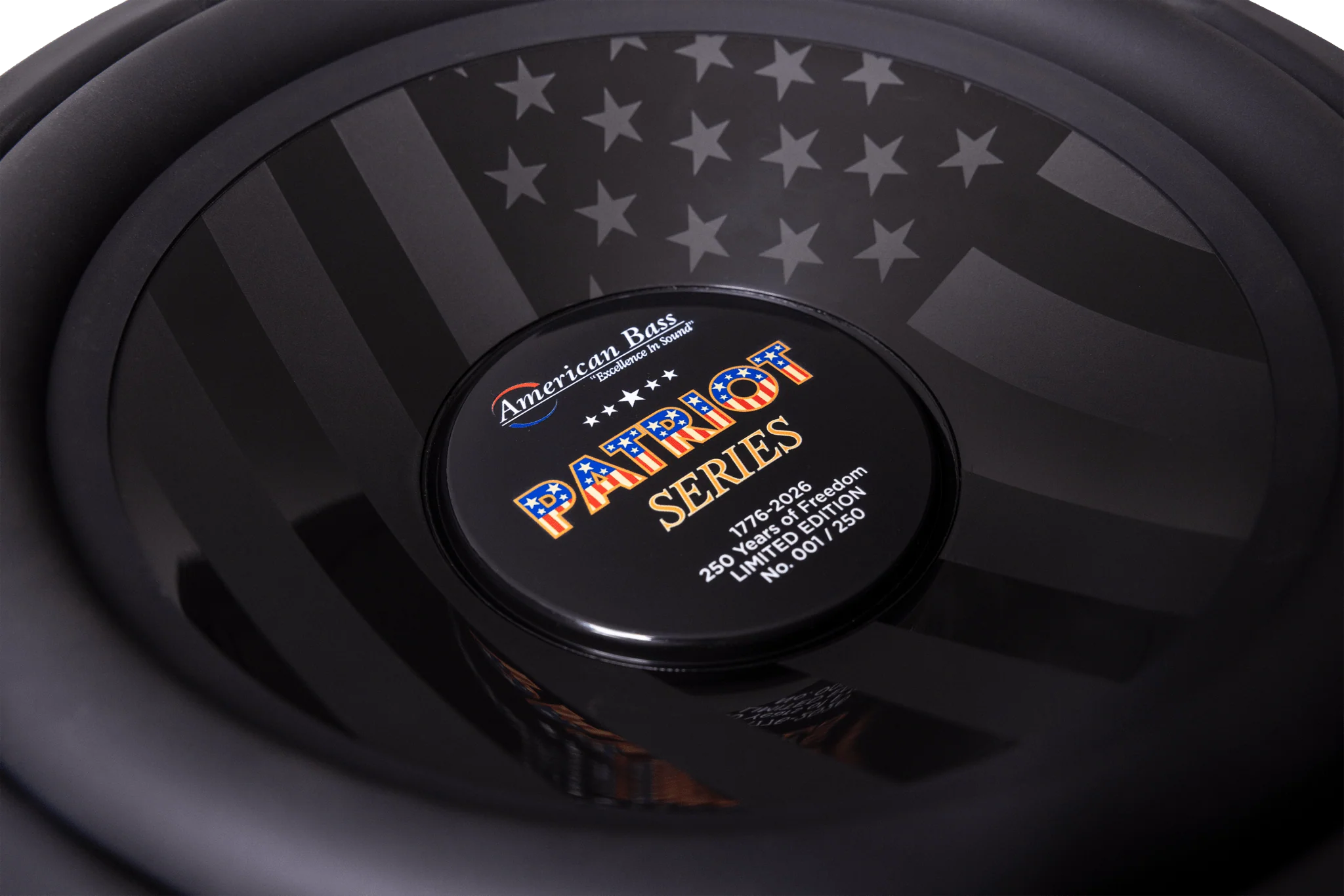

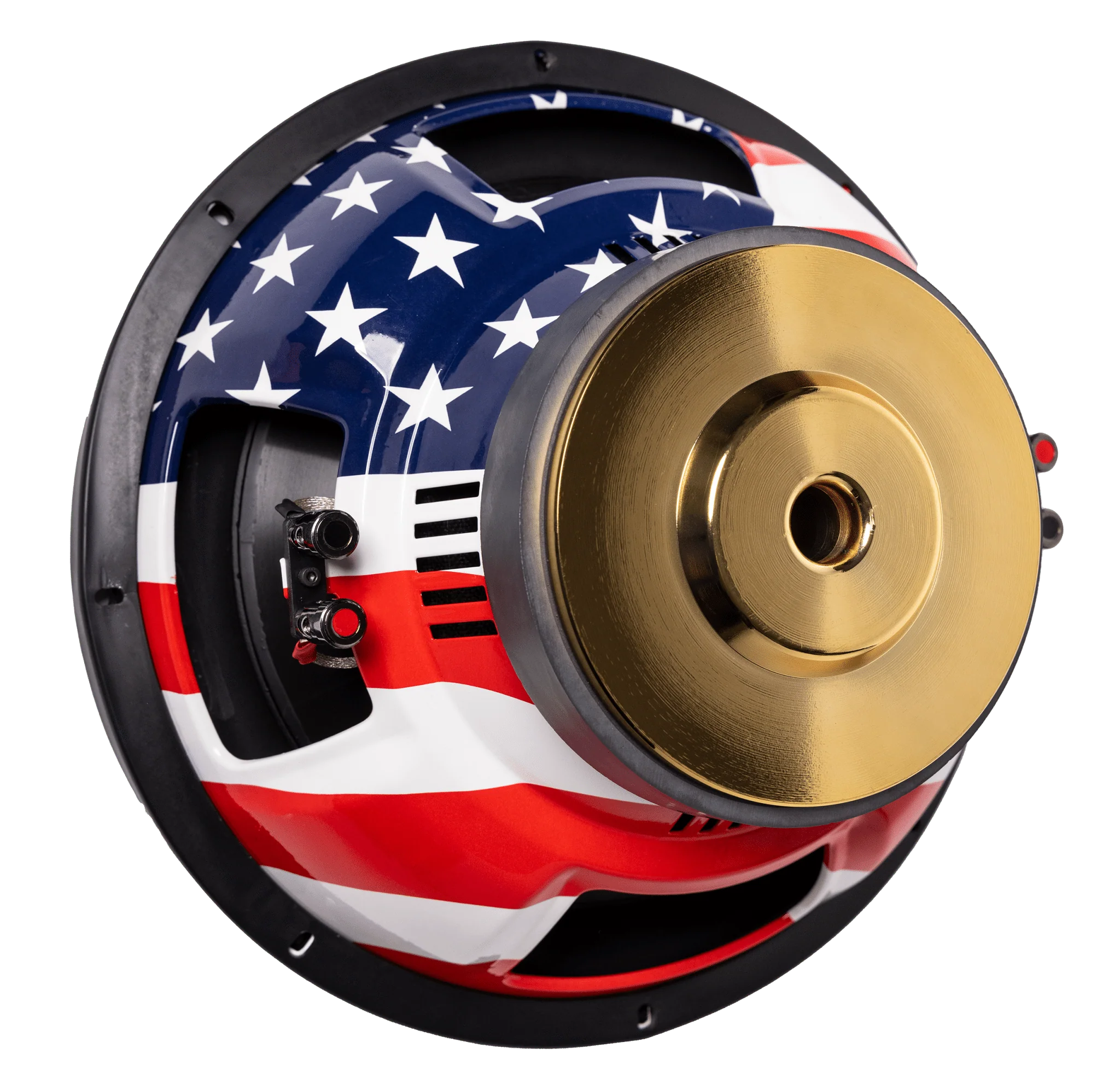

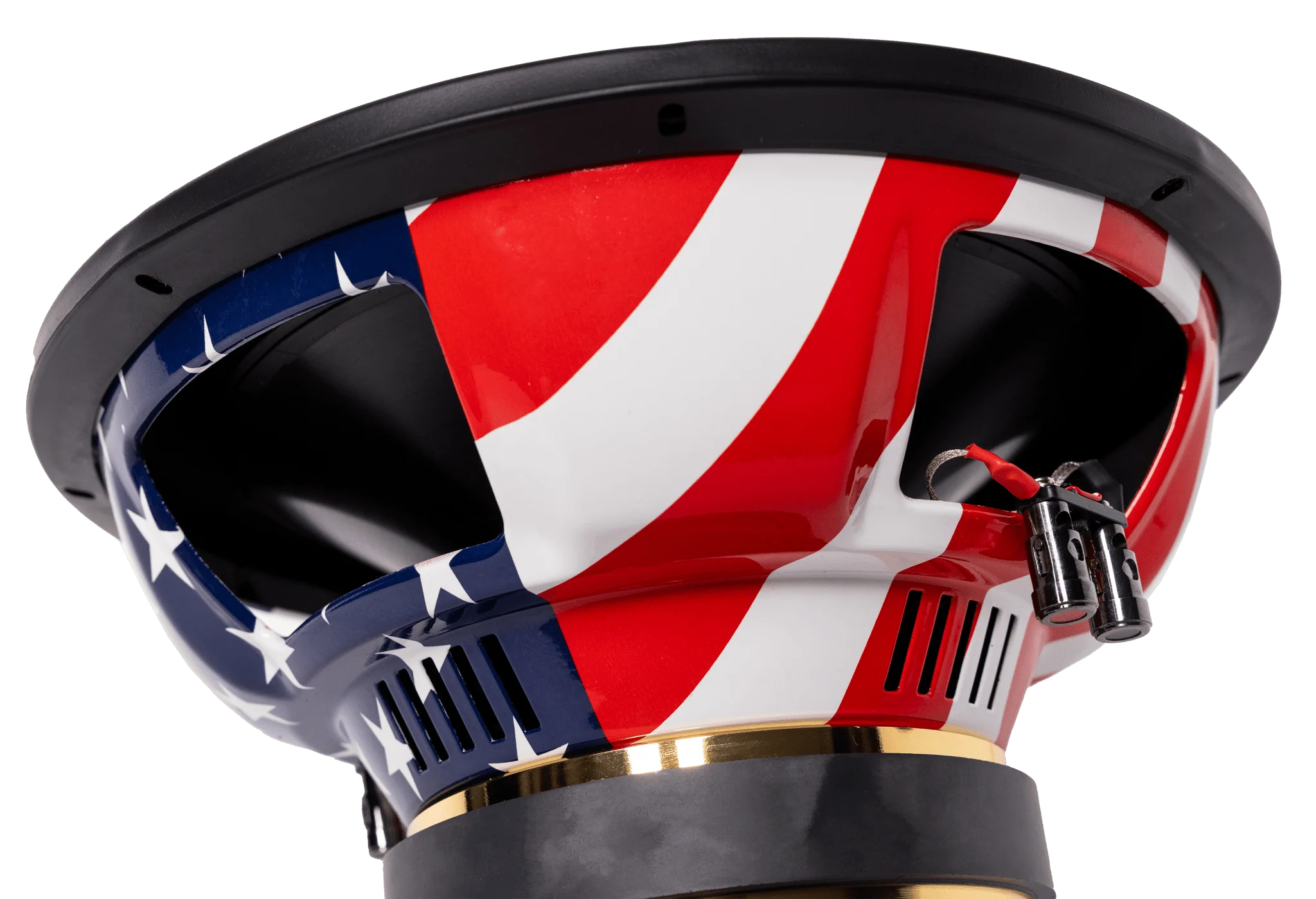

The front cone features a stealth blackout American flag etched into the cone face. Flip it over and a full-color, high-gloss American flag wraps the entire cast alloy basket — stars, stripes, and soul. A machined gold pole plate finishes the build the way it deserves: bold, permanent, and unmistakably American Bass.
Electrical & Power
- Nominal Impedance: Dual 4+4 Ohm (±5%)
- DC Resistance (DCR): 1.8 + 1.8 Ohm (±5%)
- Rated Power (RMS): 400 W — Sine wave, program signal
- Max Power: 800 W — Sine wave, program signal
- Sensitivity (SPL): 89 dB (±2 dB) @ 1W/1m, on axis
- Resonant Frequency (Fo): 32 Hz (±20%)
- Total Q (Qts): 0.4 (±15%)
Thiele-Small Parameters (LMS Measured — Jun 16, 2026)
- Re (Revc): 3.600 Ohm
- Fs (Fo): 34.599 Hz
- Qts: 0.393 | Qes: 0.454 | Qms: 2.933
- Vas: 63.38 L
- BL: 14.715 T·m
- Mms: 125.600 g
- Sd (Effective Cone Area): 514.72 cm²
- Cms: 168.469 µm/N
- Reference Efficiency (No): 0.559%
- SPLo: 89.5 dB
Construction & Materials
- Magnet: Ø156 × Ø60 × 25 mm — Ferrite Y30 — 70.50 oz.
- Pole Plate: 8 mm — Machined Gold Finish
- Voice Coil: Ø49.5 mm — ASV (Aluminum Short Voice Coil)
- Cone: Injection-Molded Polypropylene (PP) — Black
- Surround: Rubber Edge
- Basket Finish: Full-Color American Flag — High-Gloss
- Cone Finish: Stealth Black — Embossed Flag Watermark
- Cosmetic: Patriot / American flag motif — Stars & stripes basket, gold pole plate
Edition Details
- SKU: PS-LD250-1222
- Series: Patriot Series
- Production Run: Limited — 250 Units Worldwide
- Commemorates: 1776 – 2026 · 250 Years of American Freedom
Description
1776 – 2026 · 250 Years of Freedom
The Patriot Series Limited 250 Edition is American Bass Audio's most exclusive subwoofer ever made. Only 250 units exist — each individually hand-numbered from the original run. When they're gone, this chapter closes permanently.
The front cone features a stealth blackout American flag etched into the cone face. Flip it over and a full-color, high-gloss American flag wraps the entire cast alloy basket — stars, stripes, and soul. A machined gold pole plate finishes the build the way it deserves: bold, permanent, and unmistakably American Bass.
Electrical & Power
- Nominal Impedance: Dual 4+4 Ohm (±5%)
- DC Resistance (DCR): 1.8 + 1.8 Ohm (±5%)
- Rated Power (RMS): 400 W — Sine wave, program signal
- Max Power: 800 W — Sine wave, program signal
- Sensitivity (SPL): 89 dB (±2 dB) @ 1W/1m, on axis
- Resonant Frequency (Fo): 32 Hz (±20%)
- Total Q (Qts): 0.4 (±15%)
Thiele-Small Parameters (LMS Measured — Jun 16, 2026)
- Re (Revc): 3.600 Ohm
- Fs (Fo): 34.599 Hz
- Qts: 0.393 | Qes: 0.454 | Qms: 2.933
- Vas: 63.38 L
- BL: 14.715 T·m
- Mms: 125.600 g
- Sd (Effective Cone Area): 514.72 cm²
- Cms: 168.469 µm/N
- Reference Efficiency (No): 0.559%
- SPLo: 89.5 dB
Construction & Materials
- Magnet: Ø156 × Ø60 × 25 mm — Ferrite Y30 — 70.50 oz.
- Pole Plate: 8 mm — Machined Gold Finish
- Voice Coil: Ø49.5 mm — ASV (Aluminum Short Voice Coil)
- Cone: Injection-Molded Polypropylene (PP) — Black
- Surround: Rubber Edge
- Basket Finish: Full-Color American Flag — High-Gloss
- Cone Finish: Stealth Black — Embossed Flag Watermark
- Cosmetic: Patriot / American flag motif — Stars & stripes basket, gold pole plate
Edition Details
- SKU: PS-LD250-1222
- Series: Patriot Series
- Production Run: Limited — 250 Units Worldwide
- Commemorates: 1776 – 2026 · 250 Years of American Freedom
